Probes Set, Hand Held | EM-6992
The EM-6992 Probe Kit includes five probes (three (3) Magnetic Field probes and two (2) Electric Field Probes) as well as a 20cm extension handle for accessing hard-to-reach places. The probes are designed for the detection of E-Field and H-Field emissions and are suited for EMC/Pre-Compliance testing as well as performing basic electric and magnetic…
Data Sheet
Details:
The EM-6992 Probe Kit includes five probes (three (3) Magnetic Field probes and two (2) Electric Field Probes) as well as a 20cm extension handle for accessing hard-to-reach places. The probes are designed for the detection of E-Field and H-Field emissions and are suited for EMC/Pre-Compliance testing as well as performing basic electric and magnetic field measurements.
Electrical
Frequency Range: DC to >1000MHz
Connector: BNC (female)
Model:
EM-6993:
6cm Loop H-Field Probe
H-Field Probe
E-Field rejection: 41 dB
Resonant Frequency: 540 MHz
EM-6994:
3cm Loop H-Field Probe
H-Field Probe
E-Field rejection: 29 dB
Resonant Frequency: 950 MHz
EM-6995:
1cm Loop H-Field Probe
H-Field Probe
E-Field rejection: 11 dB
Resonant Frequency: 2500 MHz
EM-6996:
3.6cm Ball E-Field Probe
E-Field Probe
H-Field rejection: 30 dB
Resonant Frequency: > 1000 MHz
EM-6997:
Stub E-Field Probe
E-Field Probe
H-Field rejection: 30 dB
Resonant Frequency: > 1500 MHz
Optional Accessory:

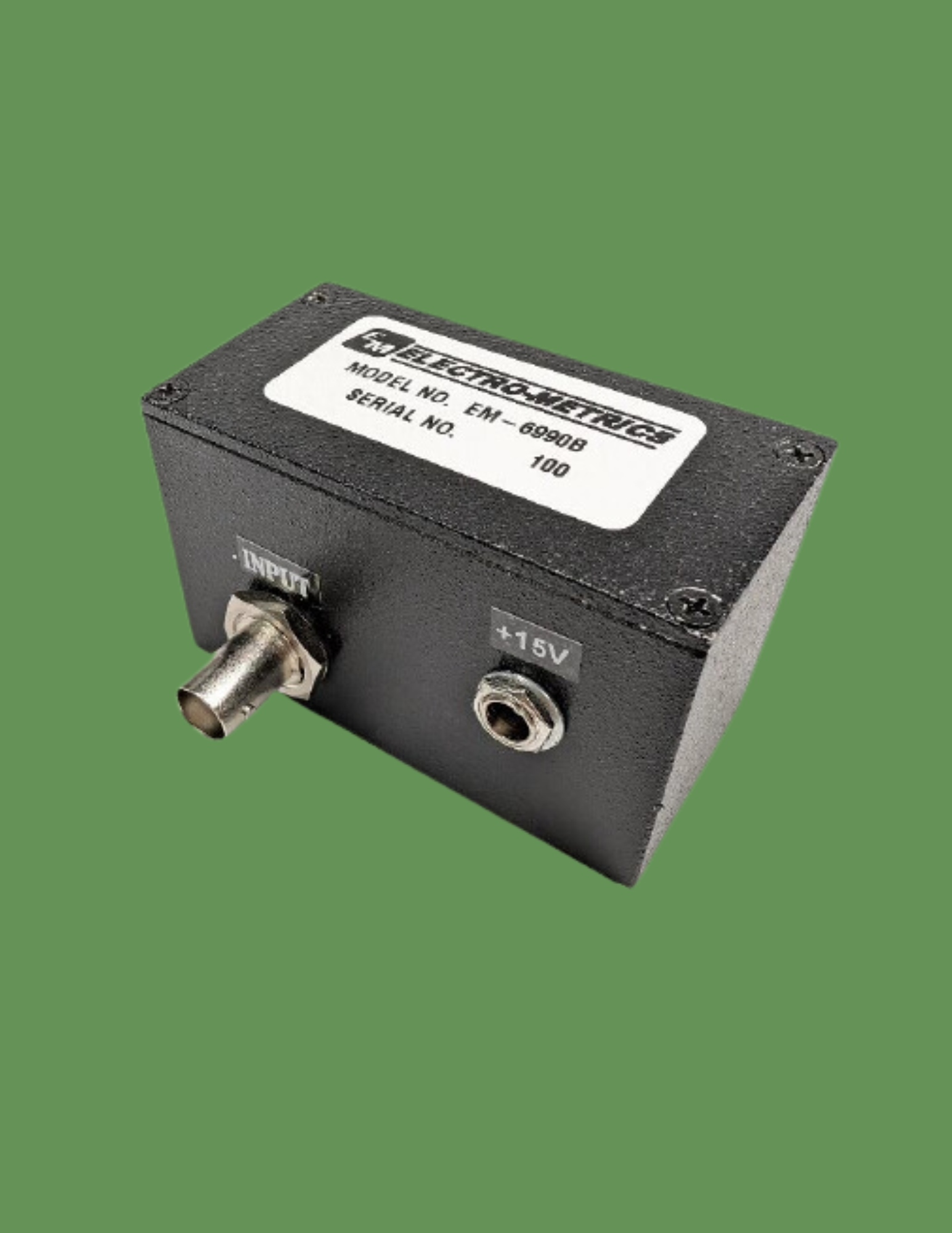

EM-6990B:
Broadband Preamplifier 10kHz – 2Ghz
Mechanical
Kit Dimensions:
Length: 33 cm (13”)
Width: 27.9 cm (11”)
Height: (5.5”)
Weight: 1.96 kg (4.32 lbs.)
